Ammonia (IIAR) Pipe Marker Label Kit, Low Halide Polyester, Orange, for B30 Printers - 4"

Part Number: 176225

Skip past media gallery
Ammonia IIAR Pipe Marker Label Kit Low Halide Polyester Orange for B30 Printers 4"
Click or press enter to play
Label/Tape Size:
$514.99
(USD) Kit
Part Number: 176225

Added to cart

item added: items added:

  • Ammonia (IIAR) Pipe Marker Label Kit, Low Halide Polyester, Orange, for B30 Printers - 4"
    Color: Green

    Part Number: 176225

    Qty at /
    $0.00
    You save $0.00!

You May Also Like

  • LOTO Tags - OSHA DANGER, Printable Front with Striped Border, Preprinted Back, for B30 Printers
    LOTO Tags - OSHA DANGER, Printable Front with Striped Border, Preprinted Back, for B30 Printers from $253.99
  • B30 Series Heavy Duty Polyester Tags
    B30 Series Heavy Duty Polyester Tags from $175.99
  • Safety Tags - Polyester, Printable, Blank, for B30 Printers
    Safety Tags - Polyester, Printable, Blank, for B30 Printers from $253.99
  • LOTO Tags - OSHA DANGER, Printable Front, Preprinted Back, for B30 Printers
    LOTO Tags - OSHA DANGER, Printable Front, Preprinted Back, for B30 Printers from $253.99
  • LOTO Tags - ANSI DANGER, Printable Front, Blank Back, for B30 Printers
    LOTO Tags - ANSI DANGER, Printable Front, Blank Back, for B30 Printers from $253.99
  • LOTO Tags - OSHA DANGER, Printable Front, Blank Back, for B30 Printers
    LOTO Tags - OSHA DANGER, Printable Front, Blank Back, for B30 Printers from $253.99
Subtotal: $0.00
Shipping and taxes calculated at checkout
View Cart ()

Description

The simplest solution for the most difficult pipe marker. Label accurately and control inventory with easy-to-assemble, highly durable Ammonia (IIAR) Pipe Marker Label Kits.
  • Modular kit lets you print and assemble labels to your system’s specifications according to the ASME (ANSI) A13.1 standard and IIAR guidelines
  • Control messaging and inventory by printing ammonia pipe marker labels how you need, when you want
  • Perfect for indoor ice rinks, food and beverage facilities, cold storage and distribution centers, and anywhere industrial refrigeration is common
  • Add specific text and arrow legends to pipe marker body using Brady Workstation premade templates, print, then apply physical state and pressure labels
  • Low-halide polyester label is designed for marking stainless steel pipes in harsh environments
  • Outdoor-grade, ultra-smooth label material withstands mild chemicals, oil and water
  • Easily replenish individual kit components as inventory depletes
  • Safety orange marker body color reflects most recent IIAR Bulletin 114 update, which denotes toxic contents under ANSI/ASME 13.1

Key Features
  • Overall Size: 8" or larger

Specifications

Key Characteristics

Product Number 176225
UPC 888434621165
UOM Kit
Brand Name Brady®

Dimensions

Dimensions 4 in W x 100 ft L
Width 4 in
Length 100 ft
Label/Tape Size 4 in W x 100 ft L

Material Characteristics

Label Properties Aggressive Adhesive, Harsh Environment, Outdoor Durable, Permanent Adhesive
Service Temperature Range °F -40 °F - 180 °F

Product Features

Application The type of application or end use environment the product is designed for. Pipe and Valve Marking
Continuous or Die-cut Continuous

Printing Specifications

Print Technology Thermal Transfer

Compatibility

Overall Size 8" or larger
Printer Compatibility BBP30, BBP31, BBP33, BBP35, BBP37, i3300, i4311, i5300, S3000, S3100, S3700
Minimum Outside Pipe Diameter 8 in

What's Included

Includes (1) 4" x 100' B569 Polyester Labels Orange (B30C-4000-569-OR), (1) 4" x 2" B302 Green Ammonia (IIAR) 50/PAC (176246), (1) 4" x 2" B302 Light Blue Ammonia (IIAR) 50/PAC (176247), (1) 4" x 2" B302 Red Ammonia (IIAR) 50/PAC (176245), (1) 4" x 2" B302 Yellow Ammonia (IIAR) 50/PAC (176249), (1) B30 Series R10000 Printer Ribbon, Black (118084)

Compliance

California Prop 65 Proposition 65 (formally titled "The Safe Drinking Water and Toxic Enforcement Act of 1986") is a California law passed by direct voter initiative in 1986. No warning label required
REACH SVHC Status Part does not contain an SVHC
REACH Candidate List Date 14 June 2023
Country of Origin All trade information (i.e. Country of Origin, Harmonized Schedule code, and/or Export Control Classification Number) and related assistance provided by Brady Corporation and its affiliates is provided for informational purposes only and is subject to change without notice. Any use of such information by you is without recourse to Brady Corporation or its affiliates and is at your own risk. This information is not provided as legal advice or as a substitute for obtaining specific legal advice. If you have any questions regarding your specific situation, you should consult your attorney. Mexico
ECCN (Export Commodity Control Number) All trade information (i.e. Country of Origin, Harmonized Schedule code, and/or Export Control Classification Number) and related assistance provided by Brady Corporation and its affiliates is provided for informational purposes only and is subject to change without notice. Any use of such information by you is without recourse to Brady Corporation or its affiliates and is at your own risk. This information is not provided as legal advice or as a substitute for obtaining specific legal advice. If you have any questions regarding your specific situation, you should consult your attorney. EAR99
HTS Code (Harmonized Tariff Schedule) All trade information (i.e. Country of Origin, Harmonized Schedule code, and/or Export Control Classification Number) and related assistance provided by Brady Corporation and its affiliates is provided for informational purposes only and is subject to change without notice. Any use of such information by you is without recourse to Brady Corporation or its affiliates and is at your own risk. This information is not provided as legal advice or as a substitute for obtaining specific legal advice. If you have any questions regarding your specific situation, you should consult your attorney. 8443.99.2550
RoHS Compliance Status Compliant with 2011/65/EU with exemptions
UNSPSC United Nations Standard Products and Services Code that is used by manufacturers. 55121725

Documentation, Guides & Videos

Product Overviews & Specs

Compliance Documents

You'll find additional compliance information in this page's product specifications and can use this form to request product certifications.

Customers Also Bought

Compatible B30 material printers—choose the right one for you

S3100 and i5300 printer comparison

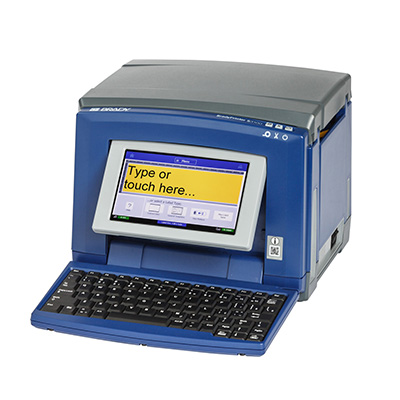

  i3300 label printer. i3300 Zero waste, fast changeovers for mid-volume printing S3100 label printer. S3100 Easy, standalone printing i5300 label printer. i5300 Rugged construction for higher volumes and larger jobs S3700 label printer. S3700 Multicolor printing with shape cutter
MSRP $1,549.00 $1,899.00 $2,249.00 $3,449.00
Main applications
  • Datacom
  • Electrical
  • General Identification
  • Hazardous Materials
  • Laboratory
  • Lean / 5S
  • Pipe Marker
  • Rating & Name Plates
  • Safety
  • Wire and Cable
  • General Identification
  • Hazardous Materials
  • Inspection Repair
  • Pipe Marker
  • Safety
  • Circuit Board
  • Datacom
  • Electrical
  • Laboratory
  • Lean / 5S
  • Pipe Marker
  • Rating & Name Plates
  • Safety
  • Wire and Cable
  • General Identification
  • Hazardous Materials
  • Inspection Repair
  • Lean / 5S
  • Pipe Marker
  • Safety
Ways to print
  • Brady Workstation Software
  • Windows based driver for 3rd party software use
  • Brady Workstation Software
  • Standalone
  • Brady Workstation Software
  • Express Labels Mobile app
  • Windows based driver for 3rd party software use
  • Brady Workstation Software
  • Express Labels Mobile app
  • Standalone
Print speed 4 inches per second 3 inches per second 10 inches per second 5 inches per second
Labels per day 3,000 labels per day 600 labels per day 5,000 labels per day 600 labels per day
Print quality 300 dpi 300 dpi 300 or 600 dpi 300 dpi
Label cutter Auto cutter Auto cutter Auto cutter
  • Auto cutter
  • XY plotter shape cutter

This label series is also compatible with the BBP30, BBP31, BBP33, BBP35, BBP37 and S3000 retired printers.

Hundreds of purpose-built materials for the applications you need

A few other B30 label materials you need to know about

Material Indoor/Outdoor Frozen Surface General Safety Lean/5S Harsh Environment
All Weather
Yes
No
Yes
Yes
No
No
Repositionable
No
No
Yes
No
Yes
No
Magnetic
Yes
No
No
No
Yes
No
Washdown Resistant
No
No
No
No
No
Yes
Low-Halide Polyester
Yes
No
No
No
No
Yes
Tags
No
No
Yes
Yes
No
Yes
Cold Temperature
No
Yes
No
No
No
No

Pipe color code chart: ANSI/ASME A13.1

Label Color Text Color Example Pipe Contents
Red White
Red
 Firefighting
Orange Black
Orange
 Toxic or corrosive
Yellow Black
Yellow
 Flammable, combustible or oxidizing
Gray Black
Gray
 Steam; or steam condensate, boiler feedwater, or other hot water
Green White
Green
 Potable, cooling, or other cold or tepid water
Blue White
Blue
 Compressed air
Purple White
Purple
 To be defined by the user
White Black
White
 To be defined by the user
Brown White
Brown
 To be defined by the user
Black White
Black
 To be defined by the user

Pipe marker visibility and size requirements

Outside Diameter of Pipe or Covering Length of Color Field Letter Height
0.7 in-1.3 in (18-33 mm) 8 in (203 mm) 0.5 in (13 mm)
1.4 in-2.4 in (34-61 mm) 8 in (203 mm) 0.7 in (19 mm)
2.5 in-6.7 in (62-170 mm) 12 in (305 mm) 1.3 in (32 mm)
6.8 in-10 in (171-254 mm) 24 in (610 mm) 2.5 in (64 mm)
Over 10 in (Over 254 mm) 32 in (813 mm) 3.5 in (89 mm)

What if your pipe or covering outside diameter is less than 0.7 inch or 18 mm?

In cases where it is difficult to label a pipe or covering due to size, we advise using durable and long-lasting energy source or valve tags in place of pipe labels or markers.

Read more about IIAR Ammonia Pipe Labeling and Marking Standards

Pipe color code chart: ANSI/ASME A13.1

Label Color Text Color Example Pipe Contents
Red White
Red
 Firefighting
Orange Black
Orange
 Toxic or corrosive
Yellow Black
Yellow
 Flammable, combustible or oxidizing
Gray Black
Gray
 Steam; or steam condensate, boiler feedwater, or other hot water
Green White
Green
 Potable, cooling, or other cold or tepid water
Blue White
Blue
 Compressed air
Purple White
Purple
 To be defined by the user
White Black
White
 To be defined by the user
Brown White
Brown
 To be defined by the user
Black White
Black
 To be defined by the user

Pipe marker visibility and size requirements

Outside Diameter of Pipe or Covering Length of Color Field Letter Height
0.7 in-1.3 in (18-33 mm) 8 in (203 mm) 0.5 in (13 mm)
1.4 in-2.4 in (34-61 mm) 8 in (203 mm) 0.7 in (19 mm)
2.5 in-6.7 in (62-170 mm) 12 in (305 mm) 1.3 in (32 mm)
6.8 in-10 in (171-254 mm) 24 in (610 mm) 2.5 in (64 mm)
Over 10 in (Over 254 mm) 32 in (813 mm) 3.5 in (89 mm)

What if your pipe or covering outside diameter is less than 0.7 inch or 18 mm?

In cases where it is difficult to label a pipe or covering due to size, we advise using durable and long-lasting energy source or valve tags in place of pipe labels or markers.

Read more about IIAR Ammonia Pipe Labeling and Marking Standards
