M21 Series Printer Label Guide
The right label makes the job. So, we make it easy to find the best size, color and any other options you may need, per application.

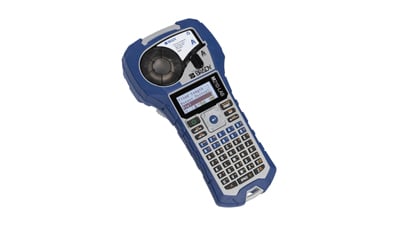

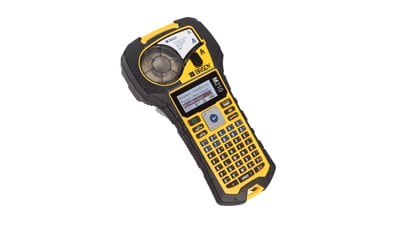

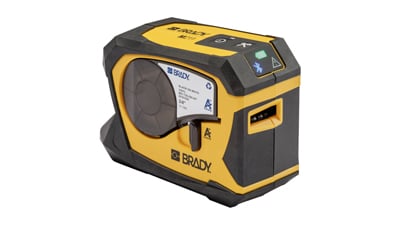

Labels are compatible with the M210, M210-LAB, M211, BMP®21-PLUS and BMP®21-LAB Printers, unless otherwise noted.
Wire and cable
Wire and cable wraps / patch panels – nylon cloth (B-499)
Aggressive Adhesive Multi-Purpose Nylon Labels are made of a highly pliable nylon material designed to conform tightly to curved surfaces, making them ideal for flagging or wrapping around wires and cables.
| Part number | Size |
|---|---|
| M21-750-499 | 0.750”W x 16' |
| M21-500-499 | 0.500”W x 16' |
| M21-375-499 | 0.375”W x 16' |
| Part number | Size |
|---|---|
| M21-11-499 * | 0.750"H x 0.500"W |
| M21-131-499 * | 1.000"H x 0.500"W |
| M21-18-499 * | 1.000"H x 0.750"W |
| M21-136-499 * | 1.500"H x 0.750"W |
| M21-137-499 * | 2.000"H x 0.750"W |
* Only compatible with M210 and M211 Label Printers.
| Part number | Size |
|---|---|
| M21-3-4-6-499 | Variety pack of different sizes - 0.375”, 0.5”, & 0.75” |
Self-Laminating vinyl labels (B-427)
Self-Laminating Vinyl Wrap Around Labels are ideal for labeling data cables and wires that are frequently handled and moved. They can be applied pre-termination or post-termination and have a clear wrap-around tail designed to laminate the printed portion of the label, providing extra protection for the label text.
| Part number | Label Size | Print-On-Height** |
|---|---|---|
| M21-1500-427 | 1.500” X 14’ | 0.500" |
| M21-1250-427 | 1.250” X 14’ | 0.500" |
| M21-1000-427 | 1.000” X 14’ | 0.375" |
| M21-750-427 | 0.750” X 14’ | 0.375" |
** Print-On Height is the amount of white printable area on the label. Label size is the printable area and the clear over-laminate tail combined.
| Part number | Label Size | Print-On-Height* |
|---|---|---|
| M21-11-427 * | 0.500"W x 0.750"H | 0.375" |
| M21-18-427 * | 1.000"W X 0.750"H | 0.375" |
* Only compatible with M210 and M211 Label Printers.
PermaSleeve® heat shrink wire and cable labels (B-342)
PermaSleeve® heat shrink wire and cable labels are made of a fade-resistant, fire-retardant polyolefin designed to fit tightly around pre-terminated wires when heat is applied for superior performance and aesthetic appearance. They have a 3:1 heat shrink ratio and meet SAE, MIL-STD specs (learn more on the technical datasheet).
| Color | AWG 22-16 0.125” Dia. X 7’ Long |
AWG 20-10 0.187” Dia. X 7’ Long |
AWG 16-8 0.250” Dia. X 7’ Long |
AWG 12-4 0.375” Dia. X 7’ Long |
|---|---|---|---|---|
| Black on White | M21-125-C-342 | M21-187-C-342 | M21-250-C-342 | M21-375-C-342 |
| Black on Yellow | M21-125-C-342-YL | M21-187-C-342-YL | M21-250-C-342-YL | M21-375-C-342-YL |
BradyGrip™ print-on hook material (B-414)
BradyGrip™ Print-on Hook Material is designed to adhere to the loop side of hook-and-loop fasteners. Specific applications include wire and cable bundle management products, such as Velcro® Brand One-Wrap® Rolls. Maximizes your uptime with faster, printable ID on cable bundles and repositionable for easy updating.
| Part number | Size |
|---|---|
| M21-250-414 | 0.250"W x 10'L |
| M21-500-414 | 0.500"W x 10'L |
| M21-750-414 | 0.750"W x 10'L |
Terminal Blocks
Aggressive adhesive multi-purpose nylon labels for terminal blocks (B-499)
Aggressive Adhesive Multi-Purpose Nylon Labels are made of the same nylon cloth material designed for wire and cable wraps. These labels are narrow enough to align on terminal blocks and print with user-specified spacing when the BMP21-PLUS printer is in terminal block mode.
| Part number | Size |
|---|---|
| M21-500-499-TB | 0.500”W x 16'L |
| M21-375-499-TB | 0.375”W x 16'L |
Faceplates, Electrical Panels and Equipment ID
Harsh environment multi-purpose polyester labels (B-423 & B-430)
Harsh Environment Multi-Purpose Polyester Label cartridges are an extremely durable labeling option for equipment ID, faceplates, electrical panels and general purpose identification. Our polyester materials are more rigid than vinyl, providing high industrial performance, but are only recommended for applications with flat and smooth surfaces.
| Color | 0.250”W X 21’L | 0.375”W X 21’L | 0.500”W X 21’L | 0.750”W X 21’L |
|---|---|---|---|---|
| Black on White | M21-250-423 | M21-375-423 | M21-500-423 | M21-750-423 |
| Black on Clear | M21-250-430 | M21-375-430 | M21-500-430 | M21-750-430 |
| White on Clear | M21-250-430-WT-CL | M21-375-430-WT-CL | M21-500-430-WT-CL | M21-750-430-WT-CL |
| Color | 0.750"W x 0.500"H | 1.000"W x 0.500"H | 1.000"W x 0.750"H | 1.500"W x 0.750"H | 2.000"W x 0.750"H |
|---|---|---|---|---|---|
| Black on White | M21-7-423 * | M21-17-423 * | M21-18-423 * | M21-30-423 * | M21-137-423 * |
* Only compatible with M210 and M211 Label Printers.
Storage ID, Tools, Lean/5S and General Purpose
All weather permanent adhesive vinyl labels (B-595)
All Weather Permanent Adhesive Vinyl Labels are the most versatile BMP21-Plus labels and ideal for general purpose labeling. They are very durable and can stand up to grease, dirt, oil and most industrial chemicals making them ideal for storage shelves, bins, tools and lean 5S applications. They will last about 8-10 years outside and come in a variety of colors.
| Color | 0.250”W X 21’L | 0.375”W X 21’L | 0.500”W X 21’L | 0.750”W X 21’L |
|---|---|---|---|---|
| Black on White | M21-250-595-WT | M21-375-595-WT | M21-500-595-WT | M21-750-595-WT |
| Black on Yellow | M21-250-595-YL | M21-375-595-YL | M21-500-595-YL | M21-750-595-YL |
| Black on Orange | - | M21-375-595-OR | M21-500-595-OR | M21-750-595-OR |
| White on Red | - | M21-375-595-RD | M21-500-595-RD | M21-750-595-RD |
| White on Blue | - | M21-375-595-BL | M21-500-595-BL | M21-750-595-BL |
| White on Green | - | M21-375-595-GN | M21-500-595-GN | M21-750-595-GN |
| White on Purple | - | M21-375-595-PL | M21-500-595-PL | M21-750-595-PL |
| White on Brown | - | M21-375-595-BR | M21-500-595-BR | M21-750-595-BR |
| Black on Grey | - | M21-375-595-GY | M21-500-595-GY | M21-750-595-GY |
| White on Black | - | M21-375-595-BK | M21-500-595-BK | M21-750-595-BK |
Repositionable Multi-Purpose Vinyl Labels (B-581)
Repositionable Multi-Purpose Vinyl Labels are made of a durable, flexible, high gloss material, ideal for indoor marking where frequent repositioning is required. The special aggressive adhesive stays in place but removes cleanly without leaving adhesive residue, making it ideal for applications like 5S and inventory management.
| Part number | Size |
|---|---|
| M21-500-581-WT * | 0.500"W x 21'L |
| M21-750-581-WT * | 0.750"W x 21'L |
* Only compatible with M210 and M211 Label Printers.
Solvent and chemical resistant polyester labels (B-488)
Solvent and Chemical Resistant Polyester Labels are ideal for general and barcode labeling as well as laboratory applications, designed to withstand numerous solvents and variable temperatures when applied to various surfaces including stainless steel and polypropylene. This material is a UL Recognized Component to UL969 Labeling and Marking Standard, as well as CSA Accepted, because it is printed with a built-in Brady series R4300 ribbon.
| Part number | Size |
|---|---|
| M21-375-488 | 0.375"W x 21'L |
| M21-500-488 | 0.500"W x 21'L |
| M21-750-488 | 0.750"W x 21'L |
Laboratory
Water dissolvable paper labels (B-403)
Water dissolvable paper labels completely dissolve in warm water within 30 seconds, leaving no adhesive residue behind. Ideal for use in labs or asset tracking. Environmentally responsible and easy removal saves time during re-labeling process.
| Part number | Size |
|---|---|
| M21-500-403 | 0.500"W x 21'L |
| M21-750-403 | 0.750"W x 21'L |
Self-laminating cryogenic polyester labels (B-461)
Self-laminating cryogenic polyester labels feature clear film with white matte printable zone, ideal for laboratory identification such as vials, centrifuge tubes, test tubes, straws, and slides. This material has good print smudge resistance, solvent resistance, high and low temperature performance and performs well in common laboratory environments such as liquid nitrogen and autoclave applications.
| Part number | Size |
|---|---|
| M21-375-461 | 0.375"W x 21'L |
| M21-500-461 | 0.500"W x 21'L |
| M21-750-461 | 0.750"W x 21'L |
Chemical resistant cryogenic polypropylene labels (B-7425)
Chemical Resistant Cryogenic Polypropylene Labels are ideal for general purpose barcode applications as well as laboratory identification such as vials, centrifuge tubes and test tubes. The matte white labels with acrylic adhesive withstand liquid nitrogen, autoclave and other harsh environments.
| Part number | Size |
|---|---|
| M21-375-7425 | 0.375"W x 21'L |
| M21-500-7425 | 0.500"W x 21'L |
| M21-750-7425 | 0.750"W x 21'L |
