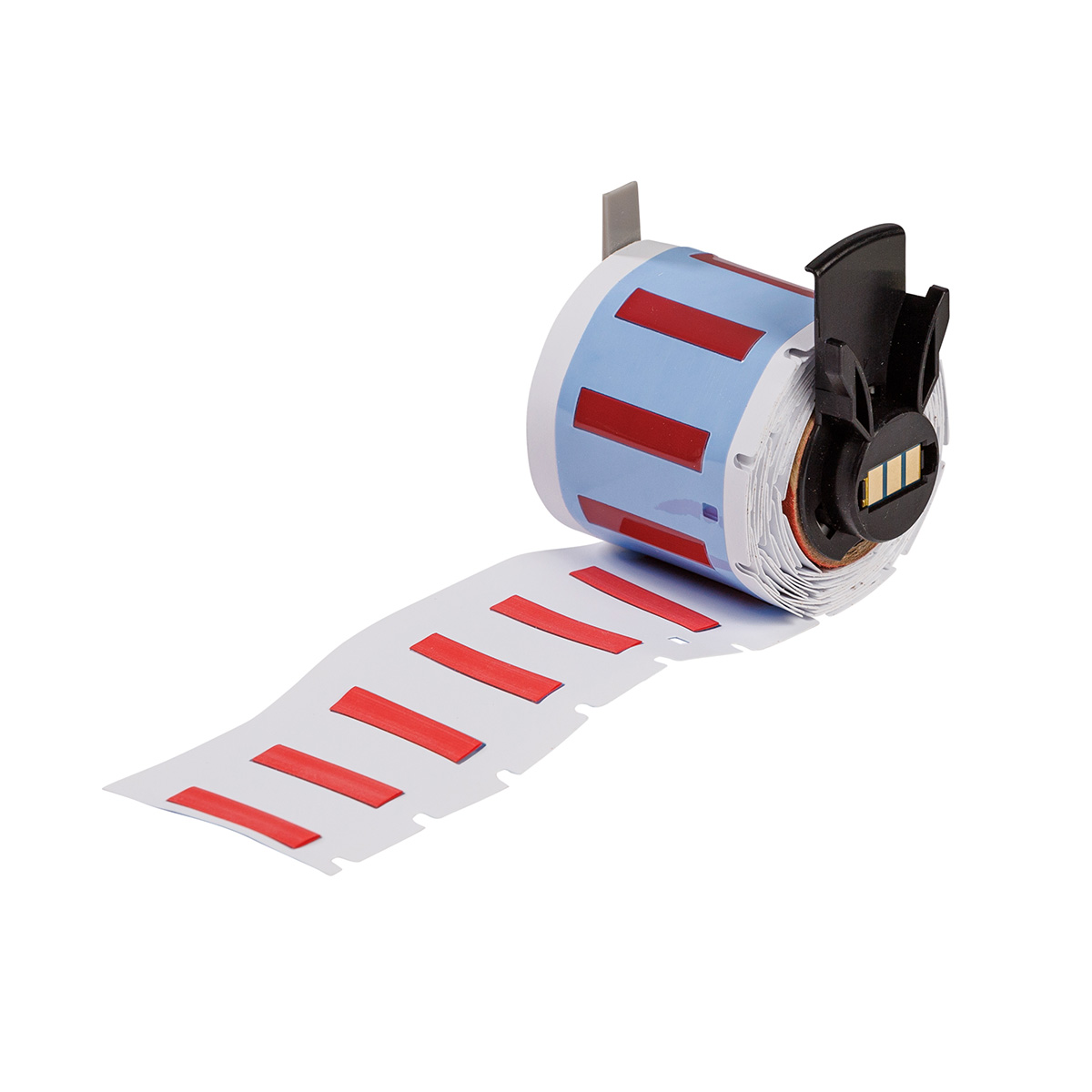

PermaSleeve Heat Shrink Wire and Cable Labels for M6 M7 Printers - 0.125" Dia x 1", Red
Part Number: M6-125-1-342-RD
Click or press enter to play
Note:
Not all combinations possible
Some product choices don't work together. If you choose something that conflicts, we'll reset your earlier selection.
$73.99
(USD)
Roll of 100 Each
Part Number: M6-125-1-342-RD
Description
Designed for rigorous wire marking applications, PermaSleeve® Heat Shrink Polyolefin (B-342) labels combine speed, ease of use, and permanence to create high quality labeling.
- Industrial Grade – Extreme temperature resistance, UV resistant, Chemical resistant, Fuel and Oil resistant, Self-extinguishing
- Superior Aesthetics – Crisp, clear identification resistant to abrasions and fading
- Certifications – UL Recognized to UL 224, RoHS Compliant to 2011/65/EU (Pass 2015/863), SAE AS23053/5 (Class 1), SAE AS-81531, MIL-STD-202
- 3:1 heat shrink labels fit snugly around wires for maximum insulation protection and permanent identification
- For material specific performance and properties, please refer to the Technical Data Sheet (TDS)
- Brady Authentic materials work seamlessly with Brady printers for improved printer and material communication, seamless mobile app interaction, and better performance and reliability
- A ribbon is required to print this material. Use Part Number M61-R4310 for the M610 / BMP61 / M611 Label Printers or M7-R4300 for the M710 / BMP71 Label Printers
Key Features
- Color: Red
- Wire Gauge Range: 22 AWG - 16 AWG
- Recommended Ribbon: M61-R4310, M61-R6610, M7-R4300, M7-R6600
- Material Number: B-342 (View Technical Data Sheet)
- Material: Heat-shrink Polyolefin
- Printer Compatibility: BMP61, BMP71 (with media adapter), M610, M611, M710 (with media adapter)
- Printable Sides: Single-Side Printable
- Sleeve Size: 0.125 in Dia x 1 in W
Specifications
Key Characteristics
| Catalog Page # Page number and hyperlink to the digital version of the print catalog. | 98 |
|---|---|
| Product Number | 173612 |
| UPC | 888434595312 |
| UOM | Roll of 100 Each |
| Quantity per Roll | 100 |
| Unit Price | $0.74/Sleeve |
| Trade Name | PermaSleeve® |
| Brand Name | Brady® |
Dimensions
| Dimensions | 0.235 in H x 1 in W x 0.125 in Dia |
|---|---|
| Height | 0.235 in |
| Width | 1 in |
| Sleeve Size | 0.125 in Dia x 1 in W |
| Vertical Repeat | 0.75 in |
| Recovered Diameter | 0.046 in |
| Web Width | 1.812 in |
| Diameter as Supplied | 0.125 in |
Material Characteristics
| Material Number The Brady number that is assigned to the base material of this product. Click on the material number to view more information. | B-342 (View Technical Data Sheet) |
|---|---|
| Material View the Material Number and Technical Data Sheet for more information. | Heat-shrink Polyolefin |
| Material Properties | Flame-retardant, Heat-shrinkable |
| Label Properties | Heat Shrink |
| Finish | Matte |
| Color | Red |
| Shrink Ratio Ratio that represents the expected shrinkage of the product when heat is applied. | 3:1 |
| Service Temperature Range °F | -67 °F - 275 °F |
Product Features
| Application The type of application or end use environment the product is designed for. | Electrical Labeling, Wire and Cable Labeling |
|---|---|
| Continuous or Die-cut | Die-cut |
| Printable Sides | Single-Side Printable |
| Quantity per Row | 1 |
| Sleeve Slits | No |
Printing Specifications
| Print Technology | Thermal Transfer |
|---|
Compatibility
| Printer Compatibility | BMP61, BMP71 (with media adapter), M610, M611, M710 (with media adapter) |
|---|---|
| Recommended Ribbon Recommended ribbon for optimal printing. If multiple ribbons are listed, confirm compatibility with your printer. See Related Items for links to ribbons. | M61-R4310, M61-R6610, M7-R4300, M7-R6600 |
| Wire Diameter Range | 0.046 in - 0.11 in |
| Wire Gauge Range THWN Wire Jacket measurements were referenced to determine approximate wire gauge size | 22 AWG - 16 AWG |
Compliance
| California Prop 65 Proposition 65 (formally titled "The Safe Drinking Water and Toxic Enforcement Act of 1986") is a California law passed by direct voter initiative in 1986. |  WARNING: Cancer risk from exposure to Antimony Trioxide. See www.p65warnings.ca.gov. |
|---|---|
| REACH SVHC Status | Part does not contain an SVHC |
| REACH Candidate List Date | 25 June 2025 |
| Country of Origin All trade information (i.e. Country of Origin, Harmonized Schedule code, and/or Export Control Classification Number) and related assistance provided by Brady Corporation and its affiliates is provided for informational purposes only and is subject to change without notice. Any use of such information by you is without recourse to Brady Corporation or its affiliates and is at your own risk. This information is not provided as legal advice or as a substitute for obtaining specific legal advice. If you have any questions regarding your specific situation, you should consult your attorney. | United States of America |
| SAE Please refer to the available Material Technical Data sheets for more detailed information. | SAE 23053/5, SAE AS-5942, SAE AS81531 |
| ECCN (Export Commodity Control Number) All trade information (i.e. Country of Origin, Harmonized Schedule code, and/or Export Control Classification Number) and related assistance provided by Brady Corporation and its affiliates is provided for informational purposes only and is subject to change without notice. Any use of such information by you is without recourse to Brady Corporation or its affiliates and is at your own risk. This information is not provided as legal advice or as a substitute for obtaining specific legal advice. If you have any questions regarding your specific situation, you should consult your attorney. | EAR99 |
| HTS Code (Harmonized Tariff Schedule) All trade information (i.e. Country of Origin, Harmonized Schedule code, and/or Export Control Classification Number) and related assistance provided by Brady Corporation and its affiliates is provided for informational purposes only and is subject to change without notice. Any use of such information by you is without recourse to Brady Corporation or its affiliates and is at your own risk. This information is not provided as legal advice or as a substitute for obtaining specific legal advice. If you have any questions regarding your specific situation, you should consult your attorney. | 8443.99.2550 |
| UL Please refer to the available Material Technical Data sheets for more detailed information. | UL224 |
| RoHS Compliance Status | Compliant with 2011/65/EU with exemptions |
| UNSPSC United Nations Standard Products and Services Code that is used by manufacturers. | 39131502 |
Documentation, Guides & Videos
Product Overviews & Specs
Compliance Documents
You'll find additional compliance information in this page's product specifications and can use this form to request product certifications.
