V4500 Wireless Bluetooth Programmable Barcode Scanner
Part Number: 177233
Click or press enter to play
$399.99
(USD)
Each
Part Number: 177233
Description
Rugged design. Seamless experience. Digitize data capture and automate your workflows with ease and accuracy with the V4500 Barcode Scanner.
- High-speed, omnidirectional barcode scanning made simple
- Ideal for inventory management, kit verification, scan and print, and packout applications
- Proprietary Cortex Decoder technology allows scanner to easily read tiny barcodes as well as shiny and hard-to-read surfaces
- Automated keyboard device and dynamic user interface lets you go from setup to first scan in seconds
- Data parsing feature lets you sort and arrange data exactly how you want – start with a simple scan and easily connect to the cloud and your ERP system
- Withstands 8' drops (MIL-STD-810G)
- Inductive-charging battery lasts a full shift with over 75,000 scans
Key Features
- 1D / 2D Barcode Capability: 2D
- Portability: Portable
- Sensor: CMOS 1.2 Megapixel
- Field of View: High Density Field: 30° Horizontal by 20° Vertical, Wide Field: 50° Horizontal by 33.5° Vertical
- Device Drop Test & Durability: Resistant to 250-lb crushes, Resistant to 8-foot drops, Resistant to military-grade shocks (MIL-STD-810G)
- Dimensions: 7.795 in H x 3.386 in W x 5.984 in D
- Color: Blue, Gray, Yellow
- Rotational Tolerance: +/- 180°
- Wireless or Wired: Wireless
Specifications
Key Characteristics
| Catalog Page # Page number and hyperlink to the digital version of the print catalog. | 9 |
|---|---|
| Product Number | 177233 |
| UPC | 888434630631 |
| UOM | Each |
| Trade Name | V4500 |
| Brand Name | Brady® |
Dimensions
| Dimensions | 7.795 in H x 3.386 in W x 5.984 in D |
|---|---|
| Height | 7.795 in |
| Width | 3.386 in |
| Depth | 5.984 in |
| Weight | 1.168 lb |
Material Characteristics
| Color | Blue, Gray, Yellow |
|---|
Product Features
| Application The type of application or end use environment the product is designed for. | Asset Tracking, Barcode Labeling, Circuit Board Labeling, General Identification |
|---|---|
| Shipped With Battery | No |
| Connectivity Options The way in which the printer or scanner can be connected to an external device, PC or Application. | Bluetooth® 5 Low Energy (class II) |
| Device Drop Test & Durability | Resistant to 250-lb crushes, Resistant to 8-foot drops, Resistant to military-grade shocks (MIL-STD-810G) |
| Plug Type | US |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz |
| Portability | Portable |
| Wireless or Wired | Wireless |
| Battery Type | Rechargeable Lithium-ion Battery |
| Rotational Tolerance | +/- 180° |
| Sensor The type of sensor used by the Barcode Scanner to read barcodes. | CMOS 1.2 Megapixel |
| Field of View The height and width of a barcode that can be read in one scanning operation, expressed in degrees. | High Density Field: 30° Horizontal by 20° Vertical, Wide Field: 50° Horizontal by 33.5° Vertical |
| Focal Point The specific measured distance between the scanner and the label at which the barcode can be optimally read. | Approximately 100 mm |
| Power Requirements | 10W |
| Number of Scans | Up to 75,000 scans per charge |
| Optical Resolution Optical resolution describes the ability of an imaging system to resolve detail in the object that is being imaged. This is expressed as a two dimensional result in pixels. | High Density Field: 960 x 640, Wide Field: 960 x 640 |
| Pitch The rotation of a bar code symbol about an axis perpendicular to the bars, expressed in degrees. | ± 65° (from front to back) |
| Skew The rotation of a barcode symbol about an axis parallel to the bars, expressed in degrees. | ± 60° from plane parallel to symbol (side-to-side) |
| Target Beam The type of light source used by the Barcode Scanner to scan barcodes. | Single blue targeting bar |
| Image Output Options | JPEG, PGM |
| 1D / 2D Barcode Capability | 2D |
| Decode Capability - Postal | Australian Post, Canada Post, Itelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Post-Net, UK Royal Mail, UPU ID-tags |
| Decode Capability - 1D Stacked | Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 |
| Decode Capability - 1D | BC412, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC / EAN / JAN |
| Decode Capability - 2D | Aztec Code, Data Matrix, Data Matrix Rectangular Ext'n, GoCode® (prorietary--add'l license req'd), Grid Matrix, HanXin Code, Micro QR Code, QR Code, QR Model 1 |
| Field Selection | High Density or Wide Field |
| Advanced Data Editing | JavaScript |
| Symbol Contrast | 15% minimum reflectance difference |
| Ambient Light Immunity | Sunlight: Up to 9,000ft-candles/96,890 lux |
| Charging Station w/BT Radio Communication Interfaces for Barcode Scanners | RS232, USB 2.0 (generic HID, HID keyboard, virtual com port) |
| Reader/Scanner Unit Communication | Bluetooth 5 Low Energy (class II) |
| Data Parsing | Driver's licenses and ID Cards (optional license required), GS1, HIBC |
| Data Structure Validation | HIBC UDI, ISO 15418, ISO 15434 |
Printing Specifications
| Device Drop Test & Durability | Resistant to 250-lb crushes, Resistant to 6-foot drops, Resistant to military-grade shocks (MIL-STD-810G) |
|---|
What's Included
| Includes | V4500 Barcode Scanner (177233) |
|---|---|
| Model | V4500 |
| Warranty | 3 Years |
Compliance
| California Prop 65 Proposition 65 (formally titled "The Safe Drinking Water and Toxic Enforcement Act of 1986") is a California law passed by direct voter initiative in 1986. | No warning label required |
|---|---|
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 14 June 2023 |
| Country of Origin All trade information (i.e. Country of Origin, Harmonized Schedule code, and/or Export Control Classification Number) and related assistance provided by Brady Corporation and its affiliates is provided for informational purposes only and is subject to change without notice. Any use of such information by you is without recourse to Brady Corporation or its affiliates and is at your own risk. This information is not provided as legal advice or as a substitute for obtaining specific legal advice. If you have any questions regarding your specific situation, you should consult your attorney. | Malaysia |
| ECCN (Export Commodity Control Number) All trade information (i.e. Country of Origin, Harmonized Schedule code, and/or Export Control Classification Number) and related assistance provided by Brady Corporation and its affiliates is provided for informational purposes only and is subject to change without notice. Any use of such information by you is without recourse to Brady Corporation or its affiliates and is at your own risk. This information is not provided as legal advice or as a substitute for obtaining specific legal advice. If you have any questions regarding your specific situation, you should consult your attorney. | EAR99 |
| HTS Code (Harmonized Tariff Schedule) All trade information (i.e. Country of Origin, Harmonized Schedule code, and/or Export Control Classification Number) and related assistance provided by Brady Corporation and its affiliates is provided for informational purposes only and is subject to change without notice. Any use of such information by you is without recourse to Brady Corporation or its affiliates and is at your own risk. This information is not provided as legal advice or as a substitute for obtaining specific legal advice. If you have any questions regarding your specific situation, you should consult your attorney. | 8471.60.8000 |
| Ingress Protection Rating Rating of protection provided against intrusion, dust, accidental contact, and water by mechanical casings and electrical enclosures. | IP65 |
| RoHS Compliance Status | Compliant with 2011/65/EU with exemptions |
| UNSPSC United Nations Standard Products and Services Code that is used by manufacturers. | 43211701 |
Drivers, Firmware & Software
Documentation, Guides & Videos
Product Overviews & Specs
- Industrial Barcode Scanners Brochure [PDF]
- V4500 Barcode Scanner Brochure [PDF]
- V4500 Barcode Scanner FAQs [PDF]
- V4500 Barcode Scanner Sellsheet [PDF]
- Brady Warranty Terms for Barcode Scanners [PDF]
-
Industrial Barcode Scanners - Overview Video
-
V4500 Barcode Scanner - Overview Video
Manuals, Guides & How-To
Compliance Documents
You'll find additional compliance information in this page's product specifications and can use this form to request product certifications.
Customers Also Bought
-
V4500 Wireless Bluetooth Programmable Barcode Scanner and Cradle Kit - 1D, 2D, QR Code
177229
$599.99 -
V4500 Wireless Bluetooth Programmable Barcode Scanner with Battery
177231
$449.99 -
V3200 Industrial Wireless Bluetooth Barcode Scanner with Industrial Protocol V1400 Cradle
Multiple Options Available
from $999.99 -
V3200 Industrial Wireless Bluetooth Barcode Scanner with V1300 Cradle
178578
$499.99 -
V1400 Industrial Ethernet Cradle Kit
178320
$649.99 -
V2200 Industrial Wired Barcode Scanner
Multiple Options Available
from $249.99 -
BradyPrinter S3700 with V4500 Barcode Scanner and Safety & Facility ID Software
177546
$3,949.00 -
BradyPrinter i3300 with V4500 Barcode Scanner and Safety & Facility ID Software
177544
$2,249.00 -
BradyPrinter i3300 with V4500 Barcode Scanner and Product & Wire ID Software
177531
$2,249.00 -
BradyPrinter S3100 with V4500 Barcode Scanner and Safety & Facility ID Software
177545
$2,499.00
High-speed, omnidirectional barcode scanning made simple by Brady
- Go from setup to first scan in seconds — Automated keyboard device + dynamic user interface
- Take the pain out of programming — Easily connect to the cloud and your ERP system
- Industrial-grade rugged durability — Withstands 6' drops (MIL-STD-810G)
- All-day battery life — Lasts a full shift with over 75,000 scans. Stay productive with inductive charging
Scan hard-to-read surfaces with ease
Tiny, shiny or curvy—the V4500's high-performance, multi-directional scanning reads any barcode.

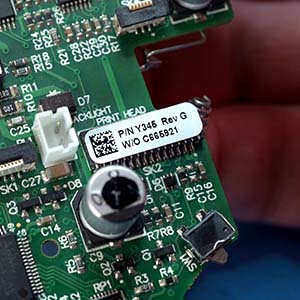

Tiny
Capture and read data from circuit boards, electronic components and laboratory vials with precision.

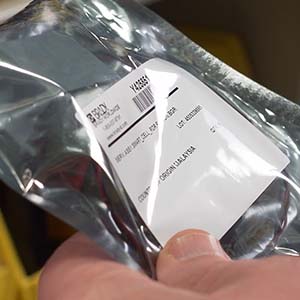

Shiny
Perfect for automotive parts, plastic injection molding dies, heavy machinery, integrated circuit chips, metal tags, rating plates and more.
Curvy
Accurately scan curved surfaces including wires, hydraulic lines, server cabling and laboratory assets.
Automate and simplify workflows with digital data capture
From the shop floor to the cloud—and everywhere in between—Brady helps you discover more ways to get better connected to your operations. Troubleshoot with more accuracy. Forecast, organize and scale across facilities. Make decisions in real-time. From automation to analytics, get everything you need to get started—then scale. Get better with Brady Intelligent Solutions.
Inventory Management
- Enable "living" interactive database
- Real time inventory levels
- Minimize misplacement of goods
- Accurately identify products
Kit Verification
- Customize scanner to fit workflow
- Step-by-step instructions
- Accurately fulfill orders
- Prevent costly rework
Scan & Print
- On-board data parsing and editing
- Combine multiple labels into one
- Accurately recreate barcodes
- Seamless Brady interface
Packout
- No guessing, get confirmation
- Prevent costly errors
- Faster workflows
- Eliminate downstream costs
